     SA系列部分回轉 電動執行器
　
　

　

Performance

Option

Standard Specipication

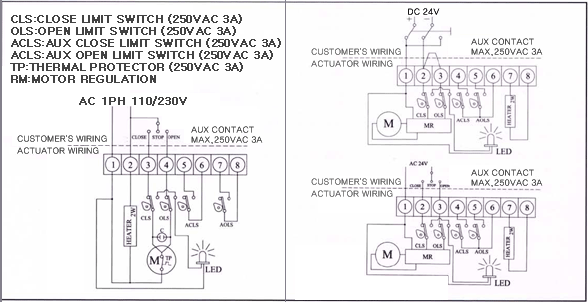

Standard Wiring

Dimension

文件下載 PDF

Designed for small quarter-turn applications.
This actuator can also automate valves requiring up to 360-degrees rotation.

Engineered to be lightweight and compact for greater versatility.

The unique housing design allows various options to be installed without the additional cost of an external enclosure.

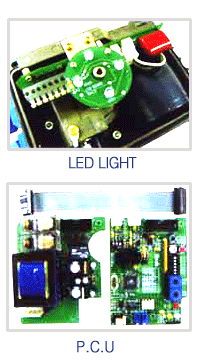

4-LED lights are located inside the high impact dome indicator.
When the actuator reaches the full open or full close position,the dome lights will illuminate and allow added visibility over a greater distance or in low light areas.

To help protect the components and extend the actuator's life, a 2-watt anti-condensation heater is included as standard.

Included with the end of travel motor switches are two additional dry-contacts for auxiliary indication.

A thermal protector is provided to protect the motor from over heating.

The worm gear drive eliminates the possibility of back drive and the need for motor brakes.

Designed for mounting in any orientation.

In case of a power loss, the manual over-ride is provided for positioning the valve.

3 ISO mounting pads are provided for greater flexibility.

MODEL Output Torque Operating Time (90˚) Motor Class E Rated Current (mA) DutyCycle Number of Handdle Turns Weight
1 Phase(AC) DC
Kg.m N.m 60Hz 50Hz W 24V 110V 240V 24V S2(%) kg
SA05 5 50 14 17 6 1.8 0.35 0.23 1.8 75 6 2.8
SA05L 5 50 14 17 6 1.8 0.35 0.23 1.8 75 6 3.2

　 　 SA05 SA05L
PIU
　		 Potentiometer Unit(1K-Ohm)
　		 ● ●
CPT Current Position Transmitter
Output DC 4-20mA
　		 　 ●
PCU Proportinal control Unit
Input:DC 4-20mA,2-10V
Output:DC 4-20mA		 　 ●
LCU Local Contorol Unit 　 ●

Indicator

Dome type(LED light inside)

Enclosure

Weatherproof enclosure IP68 Nema 4and6

Ambient Temperature

-20℃ to + 70℃,

Power Supply

AC 110/230 1PH ±10% 50/60Hz, DC 24V(AC24V)

Limit Switches

2 Open/Close + Dry contact2 Open/Close

Travel Angle

90˚±5˚ (extention upto 360˚)

Manual Operation

By L-wrench(6mm hexagon)

Self Locking

Provided by means of Worm Gearing

Space Heater

2W (110/230 VAC, 24 VDC)

Conduit Entries

Two PF 1/2" (option:PG 13.5, NPT1/2")

Lubrication

Grease Moly (EP Type)

Materials

Steel, Aluminium Alloy, All Bronze

Surface Treatment

Anodizing

External Coating

Polyester (TGIC-Free)

SA05 SA05-L BASE

　
